SportsAthleticsRunning
SPORT FOCUS
Where the game

TRACKS.

Full-pour PU, sandwich system, and prefabricated surfaces — built for stadiums, universities, and sports complexes.

IAAF Homologated
400
m x 8 lanes
6-10
weeks build
8
yr warranty
3
system options
Surface Options

Choose your surface. Any budget.

Three tiers engineered for different levels of play. All certified to international standards.

IAAF Class 2
Sandwich System
IAAF Class 2

Best shock absorption, sealed base + spray coat, club standard

Mid-tier
IAAF Class 2
Prefabricated Rubber
IAAF Class 2

Factory-rolled sheets, fastest install, budget-conscious

Entry
Engineering

What's under your spikes.

An IAAF-homologated track is a precision sandwich of polyurethane and rubber, engineered for force reduction, energy return, and all-weather performance.

Wearing Course
2.5 mm

2.5mm spray-applied PU with 1–3mm EPDM granules. The running surface. Tuned for friction (wet ≥0.5) and spike resistance. Available in red, blue, green, or custom mixes.

Structural Spray
2 mm

2mm PU structural coat binding 2–4mm SBR base mat. Provides vertical deformation (0.6–1.8mm) and force reduction (35–50%) per IAAF standards.

Base Mat
10 mm

10mm factory-vulcanised SBR rubber mat. The primary shock absorption layer. Manufactured to precise thickness tolerance ±1mm for consistent performance.

Asphalt Base
190 mm

40mm asphalt concrete (AC-14) over 150mm granular sub-base. Compacted to >95% Marshall density. Laser-levelled for surface regularity.

Subgrade

Prepared soil subgrade with geotextile separation. Cross-fall 1% for drainage. CBR ≥8% for structural stability under cyclic loading.

Wearing Course
Structural Spray
Base Mat
Asphalt Base
Subgrade

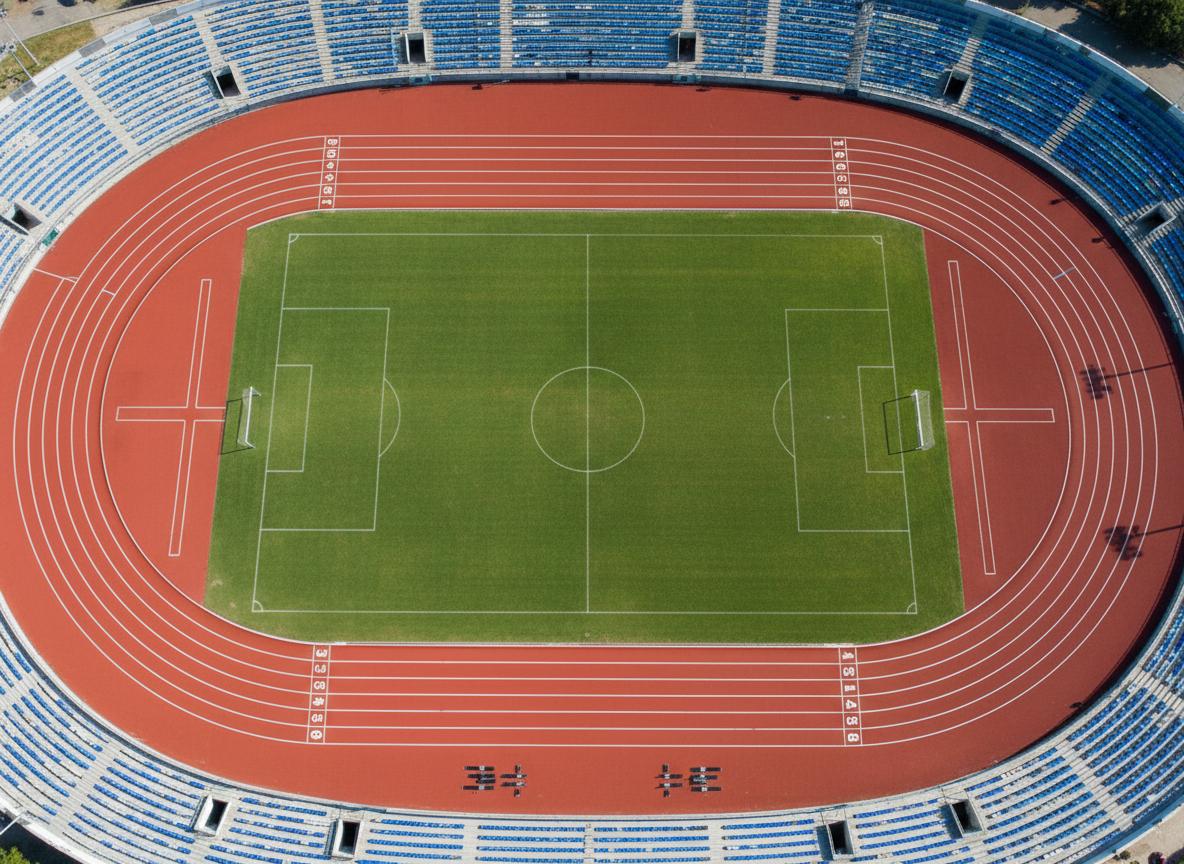

Aerial view of IAAF-certified 400m running track with full-pour PU system and 8-lane configuration
Running Court Dimensions
Standard Track
400m x 8 lanes
Lane Width
1.22m per lane
Radius
36.5m (inner)
Surface Type
Polyurethane rubber
Systems
Full-pour / Sandwich / Prefab
Certification
IAAF Grade 1 / 2 / 3
Common Questions

Things buyers want to know.

If your question is not answered here, drop us a line — we reply within 24 hours.

What is the difference between full-pour and sandwich system?

Full-pour PU: 13mm of polyurethane + EPDM rubber mix poured in one seamless layer. Most durable, best for heavy-use stadiums, IAAF Class 1, 15+ year life. Sandwich system: sealed base + spray-coated wear layer. Better shock absorption, more economical, IAAF Class 2, 10-12 year life. Full-pour is 30-40% more expensive but lasts longer.

How long does track construction take?

A standard 400m 8-lane track: 6 to 10 weeks. This includes: earthworks, drainage, concrete kerb installation, base layer, synthetic surface application, line marking, and curing. Prefabricated rolls are fastest (4-6 weeks). Weather is critical — no rain during base and surface application.

Can you add lanes to an existing track?

Yes, we can widen existing tracks from 6 to 8 lanes, or add a second inner warm-up lane. This requires: kerb removal, base extension, surface matching, and full line marking. Most extensions take 2 to 3 weeks. We can also overlay existing worn surfaces without full reconstruction.

What does it cost per square foot?

Full-pour PU system: ₹140–200 per sqft — IAAF-certified, poured in 2 layers for elite competition tracks. Sandwich system: ₹110–160 per sqft with prefabricated base and sprayed topcoat. Spray coat: ₹70–110 per sqft for budget tracks and school athletics. A standard 400m 8-lane track (approx. 7,500 sqm) ranges from ₹60 lakhs to ₹1.5+ crores depending on certification level and drainage.

Do you handle lane marking and numbering?

Yes, all tracks include full lane marking per IAAF standards — 8 lanes, staggered start lines for 100m/200m/400m, exchange zones for relays, hurdle markings, and lane numbers. We use UV-resistant polyurethane paint that lasts 3-5 years before refresh needed.

How often does the track need resurfacing?

Full-pour PU: 12 to 15 years with basic maintenance. Sandwich system: 8 to 12 years. Prefabricated: 10 to 15 years. Signs of wear: granule loss, hard spots, colour fading, and drainage issues. Annual inspection and deep cleaning extends life significantly. We offer maintenance contracts.

Get a Quote

Start your running project.

No sales calls. We read every message and reply with a clear next step within 24 hours.

Ready to plan
your running tracks?

Tell us your space, your budget, your timeline. We will come back with a clear next step within 24 hours — usually a free site visit.

Start a Running Project
